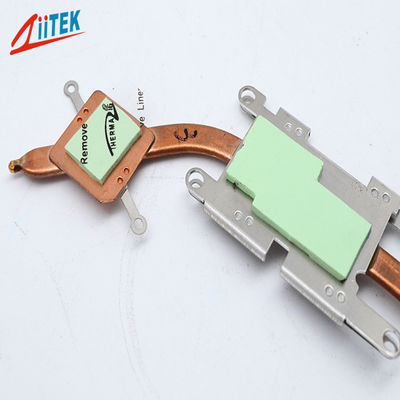

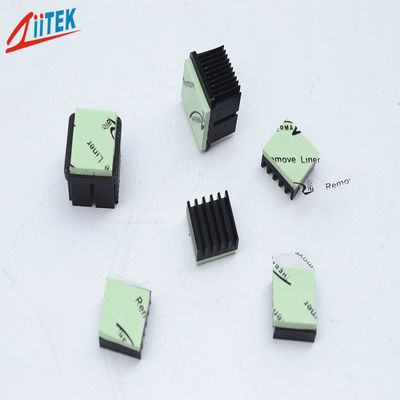

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights

Grote Afbeelding :  Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights

Productdetails:
Plaats van herkomst: CHINA
Merknaam: ZIITEK
Certificering: UL and RoHs
Modelnummer: TIF100-07E-serie
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 pccs
Prijs: Onderhandelbaar
Verpakking Details: 1000 stcs/tas
Levertijd: 3-5 werkdagen
Levering vermogen: 100000 pcs/dag
Gedetailleerde productomschrijving
Productennaam: Materialen voor thermisch beheer Premium zachte thermisch geleidende vulpads voor straatverlichting Kleur: groente
Dikte: 0.020" ((0.5mm) ~ 0.200" ((5.0mm) Hardheid: 35 Kust 00
Steekproef: Monster gratis Thermische geleidbaarheid: 1,5 W/m-K
Sollicitatie: Halfgeleider, straatverlichting ononderbroken gebruikstemperaturen: -45 tot 200°C
Trefwoorden: Materialen voor thermisch beheer

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights



The TIF®100-07E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light



Typical Properties of TIF®100-07E Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
