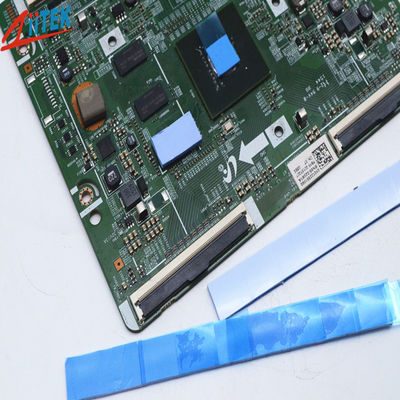

Blue Silicone Thermal Pad 0.5mm to 5.0mm Thick for Electronic Components Heat Dissipation with -45 to 200℃ Continuous Use

Blue Silicone Thermal Pad 0.5mm to 5.0mm Thick for Electronic Components Heat Dissipation with -45 to 200℃ Continuous Use

Grote Afbeelding :  Blue Silicone Thermal Pad 0.5mm to 5.0mm Thick for Electronic Components Heat Dissipation with -45 to 200℃ Continuous Use

Productdetails:
Plaats van herkomst: CHINA
Merknaam: ZIITEK
Certificering: UL and RoHs
Modelnummer: TIF100-05E-serie
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 pccs
Prijs: Onderhandelbaar
Verpakking Details: 1000 stcs/tas
Levertijd: 3-5 werkdagen
Levering vermogen: 100000 pcs/dag
Gedetailleerde productomschrijving
Productennaam: Blauw Thermisch Pad 0,5 mm tot 5,0 mm dikke siliconen thermische pads voor elektronische componenten Sollicitatie: Elektronische componenten Warmteafvoer
Steekproef: Monster gratis Dikte: 0.020" ((0.5mm) ~ 0.200" ((5.0mm)
Trefwoorden: Blauw thermisch kussen Thermische geleidbaarheid: 1,5 W/m-K
ononderbroken gebruikstemperaturen: -45 tot 200°C Hardheid: 35 Kust 00
Kleur: Blauw
Markeren:

0.5mm silicone thermal pad

,

5.0mm thermal gap filler

,

electronic heat dissipation pad

Blue Thermal Pad 0.5mm To 5.0mm Thick Silicone Thermal Pads For Electronic Components Heat Dissipation



The TIF®100-05E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Mass storage devices
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp



Typical Properties of TIF®100-05E Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

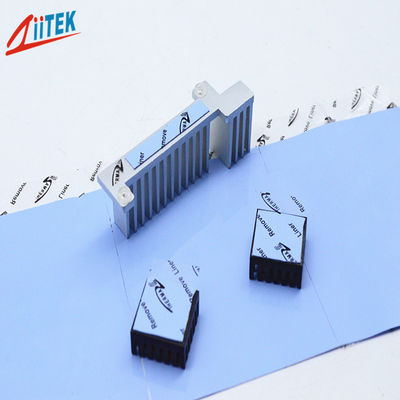

Blue Silicone Thermal Pad 0.5mm to 5.0mm Thick for Electronic Components Heat Dissipation with -45 to 200℃ Continuous Use 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
