OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

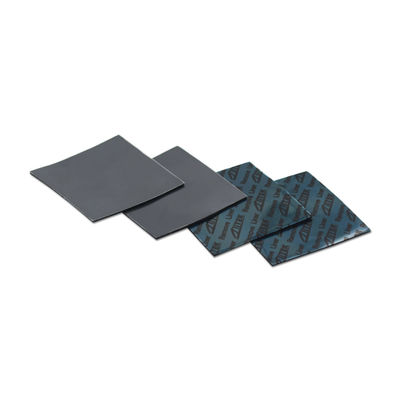

Grote Afbeelding : OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	ZIITEK
Certificering:	UL and RoHs
Modelnummer:	TIF100-01E

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1000 pccs
Prijs:	Onderhandelbaar
Verpakking Details:	1000 stcs/tas
Levertijd:	3-5 werkdagen
Levering vermogen:	100000 pcs/dag

Contact

Gedetailleerde productomschrijving

Productennaam:	OEM aangepaste maat thermisch geleidende pad thermisch geleidende siliciumkussen	Trefwoorden:	Thermisch geleidende siliciumblokjes
Thermische geleidbaarheid:	1,5 W/m-K	Sollicitatie:	LED -licht en alle goede elektronica
Hardheid:	35 Kust 00	ononderbroken gebruikstemperaturen:	-45 tot 200°C
Kleur:	Zwart	Dikte:	0.020" ((0.5mm) ~ 0.200" ((5.0mm)

OEM Customized Size Thermal Conductive Pad Thermal Conductive Silicon Pad

The TIF^®100-01E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive: 1.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> CPU
> Display card
> Mainboard/mother board

Typical Properties of TIF^®100-01E Series
Property	Value	Test method
Color	Black	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.3 g/cc	ASTM D297
Hardness	35 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	> 5500 VAC	ASTM D149
Dielectric Constant	4.7 MHz	ASTM D150
Volume Resistivity	1.0 X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing(TML)	0.35%	ASTM E595
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
