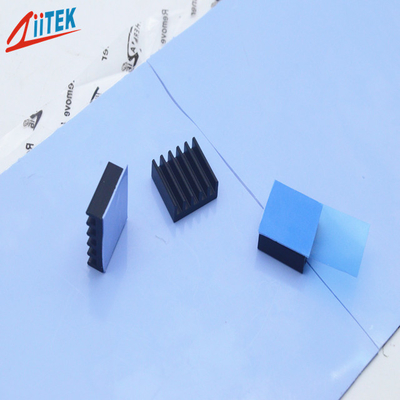

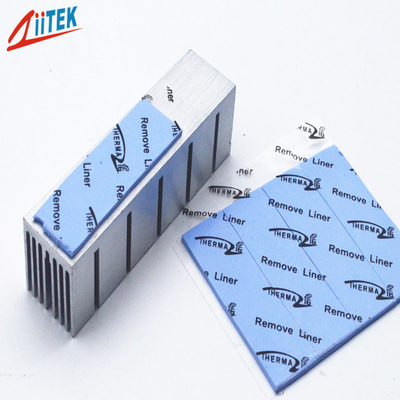

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

Grote Afbeelding : 1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	ZIITEK
Certificering:	UL and RoHs
Modelnummer:	TIF100-12-05ES

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1000 pccs
Prijs:	Onderhandelbaar
Verpakking Details:	1000 stcs/tas
Levertijd:	3-5 werkdagen
Levering vermogen:	100000 pcs/dag

Contact

Gedetailleerde productomschrijving

Productennaam:	1.2W/MK Thermal Pad Multi Size Silicone Pad High-Temperature CPU grafische kaart Warmte Dissipatie I	Trefwoorden:	Thermisch pad
Thermische geleidbaarheid:	1.2W/MK	Dikte:	0.020" ((0.5mm) ~ 0.200" ((5.0mm)
Hardheid:	12±5 kust 00	Kleur:	Blauw
Steekproef:	Monster gratis	Soortelijk gewicht:	2,0g/cc
Sollicitatie:	CPU grafische kaart warmtedissipatie

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

The TIF^®100-12-05ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-12-05ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Easy release construction
> Electrically isolating
> High durability

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF^®100-12-05ES Series
Color	Blue	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.0 g/cc	ASTM D297
Hardness	12±5 Shore 00	ASTM 2240
Operating Temp	-40 ~ 160℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	4.5 MHz	ASTM D150
Volume Resistivity	≥1.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Outgassing(TML)	0.40%	ASTM E595
Thermal conductivity	1.2W/m-K	ASTM D5470

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad 0

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
